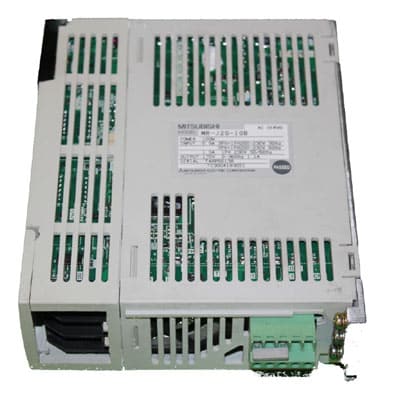

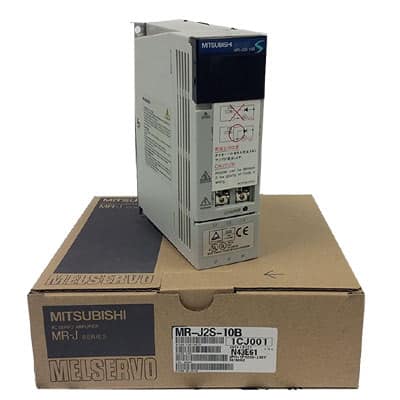

ITSUBISHI MR-J2S-10B Product information and technical parameters：
Brand: MITSUBISHI
Name: SSCNET interface servo amplifier
Model: MR-J2S-10B
MITSUBISHI general purpose AC servo amplifier MELSERVO-J2-Super series.
Rated output: 0.2kw.
SSCNET interface.
Voltage: 3 phase AC200VAC or single phase AC230V.
Complete synchronization system with SSCNET high speed serial communication,
The communication cycle between the controller and the servo amplifier is the longest 0.888ms.
Such systems will be able to provide high reliability and high performance.
When connecting the servo system with SSCNET,
In the motion system, the parameters of the servo amplifier and the acquisition of the data will be displayed on the motion controller.
Connect a dedicated cable with an amplifier and a controller to form a SSCNET system.
This simple connection method reduces the routing time and helps to prevent noise.
Even in the MELSERVO-J2-SUPER series products using high resolution coding standards, the command frequency is no limit.
It is only necessary to add a battery on the servo amplifier, which can form the absolute value system.
Currently there are more than 1000000 high reliability SSCNET servo amplifier networks in use.
Motor series: low inertia, medium capacity.
Rated output power: 50.0kw.
Rated speed: 2000rpm.
With the brake: without.
Voltage: 400V level.
Shaft end: straight shaft.
Brushless motor has small size, light weight, large output, fast response, high speed, small inertia, smooth rotation, and stable torque MITSUBISHI MR-J2S-10B.
Control is complex, easy to realize intelligent, and its electronic commutation method is flexible, can square wave commutation or sine wave commutation MR-J2S-10B
Motor maintenance free, high efficiency, low operating temperature, electromagnetic radiation is very small, long life, can be used for a variety of environments.
AC servo motor is brushless motor, which is divided into synchronous and asynchronous motor,
At present, the general use of synchronous motor control, which is a large range of power,
Can do a lot of power MITSUBISHI MR-J2S-10B.
Large inertia, the maximum rotation speed is low, and with the increase of power and rapid reduction.
So it is suitable for the application of low speed and stable operation. Servo motor series: medium inertia, medium power.
Rated output: 0.85kw.
Rated speed: 1000r/min MITSUBISHI MR-J2S-10B.
Electromagnetic brake: with.
Shaft end specification: Standard (straight axis).
Characteristics: medium inertia has two types of low speed and high speed, suitable for different applications.
IP level: IP67.
Application example:
1, material handling system.
2, industrial robots.
3, X-Y working table.
The protection level of the HF-SP/HF-JP series servo motor is IP67 (except the shaft part).
Motor capacity selection soft (MRZJW3-MOTSZ111E)
Friendly interface design, only in the mechanical description window input constant and operation mode can choose the best servo amplifier,
The servo motor and the regenerative braking options, but also in the selection window in the selection of linear sservo motor and direct drive motor MR-J2S-10B.
Characteristic
(1) 10 typical mechanical transmission structure can be used to choose
(2) user defined operating modes (location and speed control)
(3) in the selection process, the feed speed and torquue can be displayed in a graphical format MR-J2S-10B.
(4) the calculation process can be displayed
Can easily calculate the power of the servo motor free softwar
