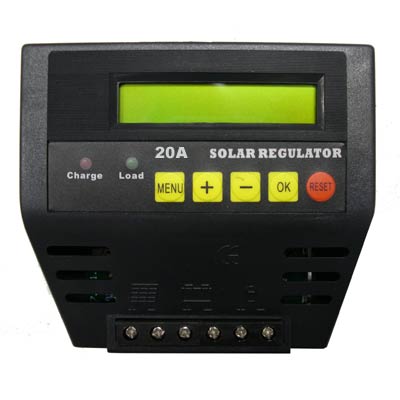

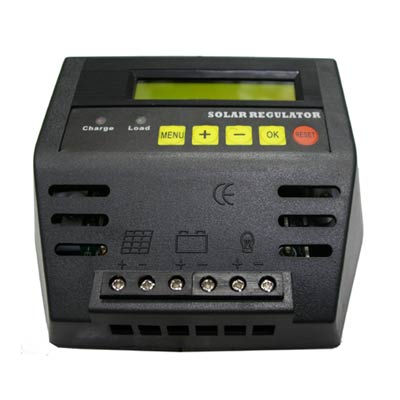

בקר טעינה סולארי Controller,בקר טעינת שמש 20A מיועד למערכות סולאריות,20A Solar Charge Controller

12Volt or 12/24 volt auto-work negative or positive ground
PWM or ON/OFF series battery charging options
State of charge (SOC) battery regulation
Battery Ah setting, boost charging, equalising charging, float charging
With external temperature sensor, and temperature compensation.
LCD display: SOC as a fuel gauge, all system parameters in digital value, system status as symbols
Full circuit protection, electronic fuse • Field adjustable parameters by four buttons
Real clock display
Load control option:
ON/OFF MODE, LIGHTING ON + EXACT TIME OFF, EXACT TIME ON/OFF, EXACT TIME ON/OFF



Rated solar input :      20A
Rated load :                20A
System voltage :     12/24V
Regulation Voltage:    14.4V
Float:                      13.4V
Equalization:             14.8V
Load Disconnect:       11.1V
Load Reconnect:       12.6V
Temp.Comp.(mV/℃): -30mV
Self-consumption :   ≤30mA
Operation temperature: -35 to +65
