תיאור
בעל הגנות זרם יתר,מתח יתר, הגנת קצר מעגל והגנה מפני התחממות יתר.
נפוץ בשימוש עבור
סולארי, טעינה וייצוב מתח מגנרטור , טעינה מיוצבת מאלטרנטור רכב, LED, פלאפונים ואבזרים אלקטרוניים, שימוש נרחב ברכב וקולנועיות גולף והתקנים נוספים הדורשים מתח מדוייק ומיוצב.
מפרט נוסף באנגלית
ontrol accuracy:0.1 V
Output voltage:equal to the supply voltage
Power consumption:less than 1.5 W
Net weight:28g
Power supply voltage: 12 V-36 V battery
Size:57 * 42 * 19 mm

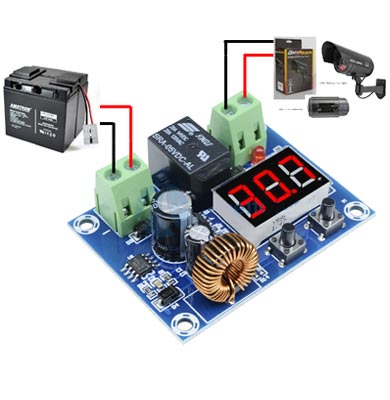

Product Name:overdischarge battery protection module
Model Number:XH-M609
Scope of application:various accumulators, lithium batteries
Instructions:
1: long press stop key, Select the required level. Start button + / stop key –
2: After selecting the required voltage. Press the start button, LED light, relay work, the output voltage!
3: When the input voltage is lower than the stop voltage, Relay stopped working, LED off, no voltage output!
4: When the output load is too high, The voltage is not enough to start the load, You can press the start button, forced to start!
Note:
1.Transition: 1cm=10mm=0.39inch
2.Please allow 0-3mm error due to manual measurement. pls make sure you do not mind before you bid.
3.Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!
Package includes:
1 x Protection Module
