תיאור
מתאים לכל דגמי מרצדס
A Class: W 168 , W 169 , W 176
AMG Class: 190
B Class: 245 , 246
C Class: 203 , 204 , 205
CL Class: 215 , 216
CLA Class: 117
CLC Class: 203
CLK Class: 209
CLS Class: 218 , 219
E Class: 207 , 211 , 212 , 213
G Class: 461 , 463
GL Class: X 164 , X 168 , X 166
GLA Class: 156
GLC Class: 253
GLE Class: 292
GLK Class: X 204
M Class: W 163 , W 164 , W 166 , 292
Maybach Class: 240
R Class: 251
S Class: 220 , 221 , 222 , 217
SL Class: R 230 , R 231
SLK Class: R 170(after 2001) , R 171 , R 172
SLS: C 197
SLR: Series 199
SMART
Smart Fortwo (A/C 450)
Smart Fortwo (C/A 451)
Smart Roadster (R/C 452)
Smart Roadster (W454)
SPRINTER
Sprinter – 901.6, 902.6, 903.6, 904.6, 905.6, 690, 906 (Up tp 2013)
Vaneo – (16 pin)
Vito/V-Class – Model Designation 638
Vito/Viano – Model Designation 639 (OBDII)

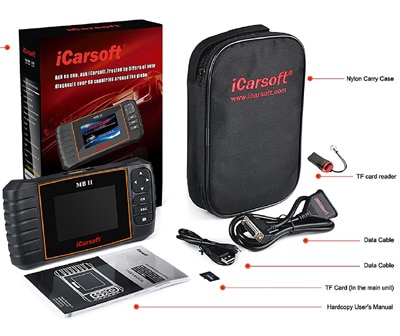

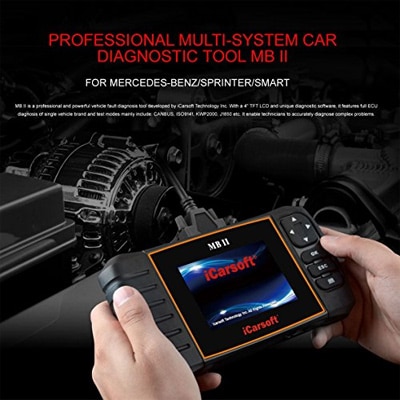

This tool expands on the functionality of the first generation iCarsoft i980(MB V1.0). Added features for the iCarsoft MBII include the following:
Oil/Service/Brake Service Reset Function
The iCarsoft 2nd Generation Diagnostic Tools allow you to reset Oil,Service, and Brake Lights in a click of a button on supported vehicles. On vehicles where a manual reset is required, the tool will guide you through the full process step-by-step.
EPB Reset Function
Brake Pad / Shoe changes on vehicles equipped with EPB's (Electronic Parking Brakes) MUST be carried out using a Diagnostic Tool to correctly re-calibrate. The iCarsoft 2nd Generation Tools offer you that capability on supported models. De-activate to Service Position – Replace – Re-activate.
ECTS Reset Function
After cleaning or replacing the Electronic Throttle Body (ECTS), adaptation must be carried out (also the case if the negative terminal of the battery has been disconnected or when the Engine Control Unit has been replaced). The iCarsoft 2nd Generation Tools will perform Electronic Throttle Body adaptations on supported vehicles.
SAS Reset Function
The Steering Angle Sensor (SAS) is used to measure the angle of the steering wheel and the speed at which it is being turned. The signal is mainly used by the ABS System as part of it's stability control function but also by other systems such as ride level control and adaptive lighting. A problem with the SAS Signal will cause a fault with any of the systems that use the signal directly, or indirectly.
If the Steering Angle Sensor (SAS) needs to be changed, many vehicle's require the new sensor to be calibrated. The iCarsoft 2nd Generation Tool will allow you to carry out steering angle re-calibration on supported models.
DPF Regeneration or Replacement
Carry out a forced Diesel Particulate Filter (DPF) Regeneration on supported vehicles – this MUST be done by trained personnel. Required when the DPF filter blockage reaches levels where passive or active regeneration is unable to burn off the excess soot. The iCarsoft 2nd Generation Tool is also capable of adapting a new DPF Filter where supported.
