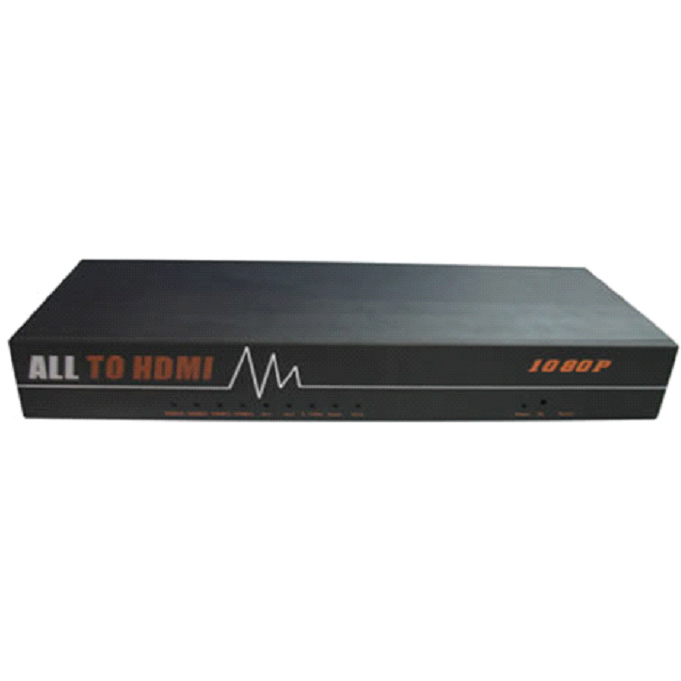

LKV391 All-to-HDMI Scaler & Switcher up-scales Component Video,(YPbPr), Composite video, SCART, S-video, VGA (with Audio) to HDMI 1080p and switch between the above signals to be output to 1 HDMI port. HDMI 1.3 and HDCP compliant.
Key Features:

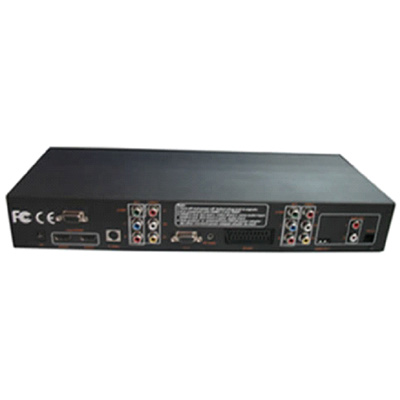

Input: 2-way A/V signal, 2-way Y Pb Pr signal, 1-way SCART signal, 1-way S-Video signal, 1-way VGA signal, and 2-way HDMI, 2 Audio Left and Audio Right input;
Output: 1-way HDMI, Audio Left, Audio Right, Optical;
Output Audio Left, Audio Right, Optical to be connected to sound box, if you want to get better sound effect;
Scale Function: build-in signal amplifier scales component Video, YPbPr, SCART, S-Video, VGA to HDMI 1080p, and up-scales 2 HDMI inputs 480i, 480p, 576i, 576p, 720p (50HZ; 60HZ);1080i (50; 60HZ) to 1080p;
Switch Function: Select between all sources to be output to 1-way HDTV by IR remote control;
With remote control to switch between the 9-way sources and select any one of the signals to be output to 1-way HDMI display;
With RS232 Control, enable you to operate the machine on your computer;
Support video color format: deep color 24bit/36bit;
Support audio format: LPCM,Dolby-AC3, DTS7.1, DSD/Dolby True HD /DTS-HD master Audio;
Display Size AdjustmentSD Input: display size is adjustable between 4:3, 16:9 and 16:10; HD input: display size is adjustable between 16:9 and 16:10.
Power adapter supply: DC: 12V, 3A.
This product is designed as an demo for customers to choose their desire type of HDMI Scaler. It is a cake composed by different flavor. Customers can choose to match this one with the other, eg. customers can choose VGA input + S-video input to be upscaled to HDMI 1080p. or RCA composite + S-video to HDMI Scaler, and we can also do display-port, DVI input to HDMI scaler.
