Description
7" LCD Monitor Specifications:
Color TFT LCD
7" Brand New Panel
480 x 234 pixels
Screen Ration 16:9
Aerospacetype AV inputs
Power voltage range at DC12V ~ 24V（If you use it in your car, we will send 12V to you, and if you use it in your truck, we can send it to you with 24V camera）
Power Consumption : Max 6W
Allinone power cable
Display reverse function
Operating Temp :14° F ~ 158° F
Camera Specifications:
Style:4 PIN
Sensor:1/3 " Color COMS
Horizontal Resolution:420TV Lines
Effective pixel:NTSC:510(H)X492(V); PAL:500(H)X582(V)
Mimimum Illumination: 0LUX(18 IR LEDs for night vision)
View angle: 120°
Video Output:1.0Vp-p75Ω
Voltage: DC12-24V
Waterproof grade: IP67
Shockproof : 10G
Dimension: 89(W) x 53(H) x 48(D) mm

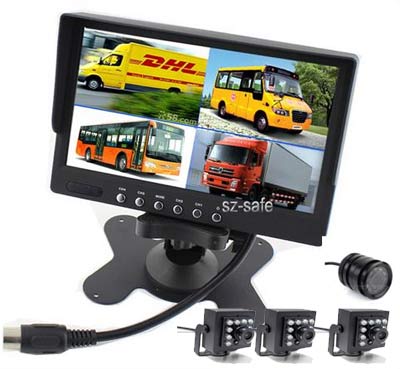

Latest & Popular 7" TFT LCD Monitor+Touch Button+Remote Control + Night Vision Rear View Camera.
A simple solution for car reverse system.
Waterproof IR camera with wide view angle, 10m length video cable, plug and play, 7" High quality ultra-thin monitor, 2 channel video inputs, Easy installation. This kit is used for 12V vehicle.
It acts as a normal rear view mirror, and reflector will automatically appears when the monitor is turned off. So you can clip it over your original mirror, and it will show rearview image; while it is connected with rear view camera (including in this package), the rear view image will appear on the screen automatically when reversing the car.
Technical Details:
-The TFT SCREEN has the switches to change between normal to mirrored image of the 2 cameras.
-Camera selection is done via remote controller or by pressing button on the monitor.
-Rear view camera is turned on automatically when vehicle is put on reverse gear.
-Aerospace-type cinch connectors are used for all connections.
-Lightweight, 16:9 wide-angle view 7" TFT LCD color monitor with remote controller.
Reverse using features:
-Auto switching when reversing Under power-on condition. When reverse gear is on, the system automatically switches from DVD/VCD video to backup camera video. And when parking is finished, it will switch back automatically, which can ensure parking safty.
-AV signal auto detecting power on/off Under power-off condition. When reverse gear is on, the system automatically starts to search for the camera signal and display backup video. When parking is finished, it will switch off automatically.
Features:
-Professionally designed system with industrial leading components/parts.
-CCD camera with 2.1mm wideangle lens. This offers a super wide field of view angle at 120°. Most other manufacturers use 3.6mm or 2.8mm lens, the view angle is much narrower. You can see more areas by using 2.1mm lens.
-Builtin 18 IR LEDs for over 20ft nightvision view.
-Heavyduty 10M (33ft) video + power cable with a waterproof aerospacetype connector.
-Waterproof camera body with a sunvisor and metal bracket. Easy to mount on any flat surface of the vehicle.
-Rubber seat for video cable to go through inside the cabinet without scratching the surface.
-12V 24V DC power input range to fit most of the medium to large vehicles on the road.
-Allinone design to get rid of the bulky converter power box, very easy to setup.
-The TFT SCREEN has the switches to change between normal to mirrored image of the 2 cameras.
-Camera selection is done via remote controller or by pressing button on the monitor.
-Rear view camera is turned on automatically when vehicle is put on reverse gear.
-The most advanced part is that the 2 cameras can switch on in turn automatically depending on the status of your vehicle, like opening the door.
-Aerospacetype cinch connectors are used for all connections. This is more reliable and simple to install.
-Lightweight 16:9 wide angle view 7" TFT LCD color monitor with remote controller. Special heatventilation design for longer life of use.
Package Included:
1 x 7" TFT LCD color monitor
1 x Mount/stand
1 x Remote control (Without Battery)
1 x Power connection wire(video connectors are built-in this wire)
1 x Screw kit for installation
1 x User manual

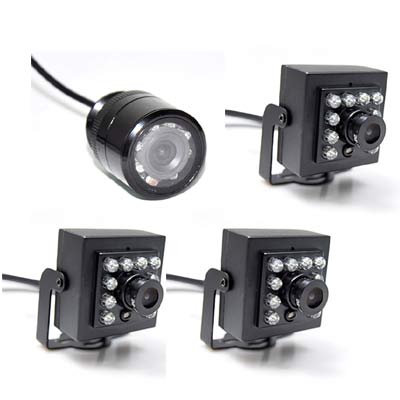

2 x Water-proof COMS cameras with IR LEDs Night Vision
