תיאור
מיועד להמרה מפורמטים של VGA, HD, YpbPr componnet,RGB,RCA לפורמט HDMI
לחיבור לטלויזה פלזמה ו LCD התומכות ב HDMI או HD איכות עד 720P
משפר את איכות הצפיה משמעותית.
מסופק יחד עם כבלים:VGA,RGB,כבל PL3.5,מטען ומפצל RCA PL
תיאור מלא

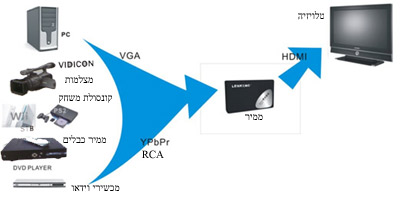

Ransform the VGA signal of PC and AUDIO singal into hi-clear HDMI signal output. Transform HD, YpbPr and left, right track singal into hi-clear HDMI signal output.
It can make PC connect with the large screen TV through HDMI channel. It also can make the equipment only have YpbPr output (such as PS2, STB, DVD etc) connect to HDMI channel of large screen TV. It can provdie the necessary services for STB and
DVD manufacturer, meanwhile, it can increase HDMI output interface for STB and DVD through increase the VGA, YpbPr transfer to HDMI suit board LKV350 of LenKeng. It not only saves the develop time, but also increases the value of the products fast.
– 1 channel VGA input, 1 channel AUDIO input, 1 channel HDMI output;
– 1 channel YpbPr input, 1 channel left and right sound input, 1 channel HDMI output;
– Support PC resolution as below:
– 640*480@60Hz, 640*480@72Hz, 640*480@75Hz, 640*480@85Hz
– 800*600@72Hz, 800*600@75Hz, 800*600@85Hz
– 1024*768@60Hz, 1024*768@70Hz, 1024*768@75Hz, 1024*768@85Hz
– 1152*864@75Hz,1280*720@60Hz,1280*768@75Hz,1280*960@60Hz
– 1280*1024@75Hz, 1280*1024@85Hz
– Support Hi-Clear YpbPr format as below:
– 480i@60,576i@50,480P@60,576P@50,720P@50,720P@60,1080i@50,
– 1080i@60,1080P@24,1080P@25,1080P@30,1080P@50,1080P@60,
– Compatible HDCP criterion;
– Prominence Characteristic;
– To provide suit board service for STB and DVD manufacturer. Also provide the
instruction of connect interface and connect method.
It can make PC connect with the large screen TV through HDMI channel. It also can make the equipment only have YpbPr output (such as PS2, STB, DVD etc) connect to HDMI channel of large screen TV. It can provdie the necessary services for STB and
DVD manufacturer, meanwhile, it can increase HDMI output interface for STB and DVD through increase the VGA, YpbPr transfer to HDMI suit board LKV350 of LenKeng. It not only saves the develop time, but also increases the value of the products fast.
– 1 channel VGA input, 1 channel AUDIO input, 1 channel HDMI output;
– 1 channel YpbPr input, 1 channel left and right sound input, 1 channel HDMI output;
– Support PC resolution as below:
– 640*480@60Hz, 640*480@72Hz, 640*480@75Hz, 640*480@85Hz
– 800*600@72Hz, 800*600@75Hz, 800*600@85Hz
– 1024*768@60Hz, 1024*768@70Hz, 1024*768@75Hz, 1024*768@85Hz
– 1152*864@75Hz,1280*720@60Hz,1280*768@75Hz,1280*960@60Hz
– 1280*1024@75Hz, 1280*1024@85Hz
– Support Hi-Clear YpbPr format as below:
– 480i@60,576i@50,480P@60,576P@50,720P@50,720P@60,1080i@50,
– 1080i@60,1080P@24,1080P@25,1080P@30,1080P@50,1080P@60,
– Compatible HDCP criterion;
– Prominence Characteristic;
– To provide suit board service for STB and DVD manufacturer. Also provide the
instruction of connect interface and connect method.
